Phase diagram analysis from relaxed trajectories

This example shows how to analyze relaxed structures and construct a phase-diagram plot using the utility function in mcpy.utils.phase_diagram.

The script evaluates the phase stability of each relaxed frame as a function of the oxygen chemical potential \(\Delta\mu_O\) and selects the lowest-energy structure across the sweep.

Example output

The figure below was produced by running a short MACE-MP sweep across \(\Delta\mu_O \in \{-0.6, -0.3, 0.0, +0.3\}\,\mathrm{eV}\) on an Ag(111) 3×3×3 slab at \(T = 500\,\mathrm{K}\) (248 GCMC frames total), then feeding the merged trajectory into analyze_phase_diagram_results.

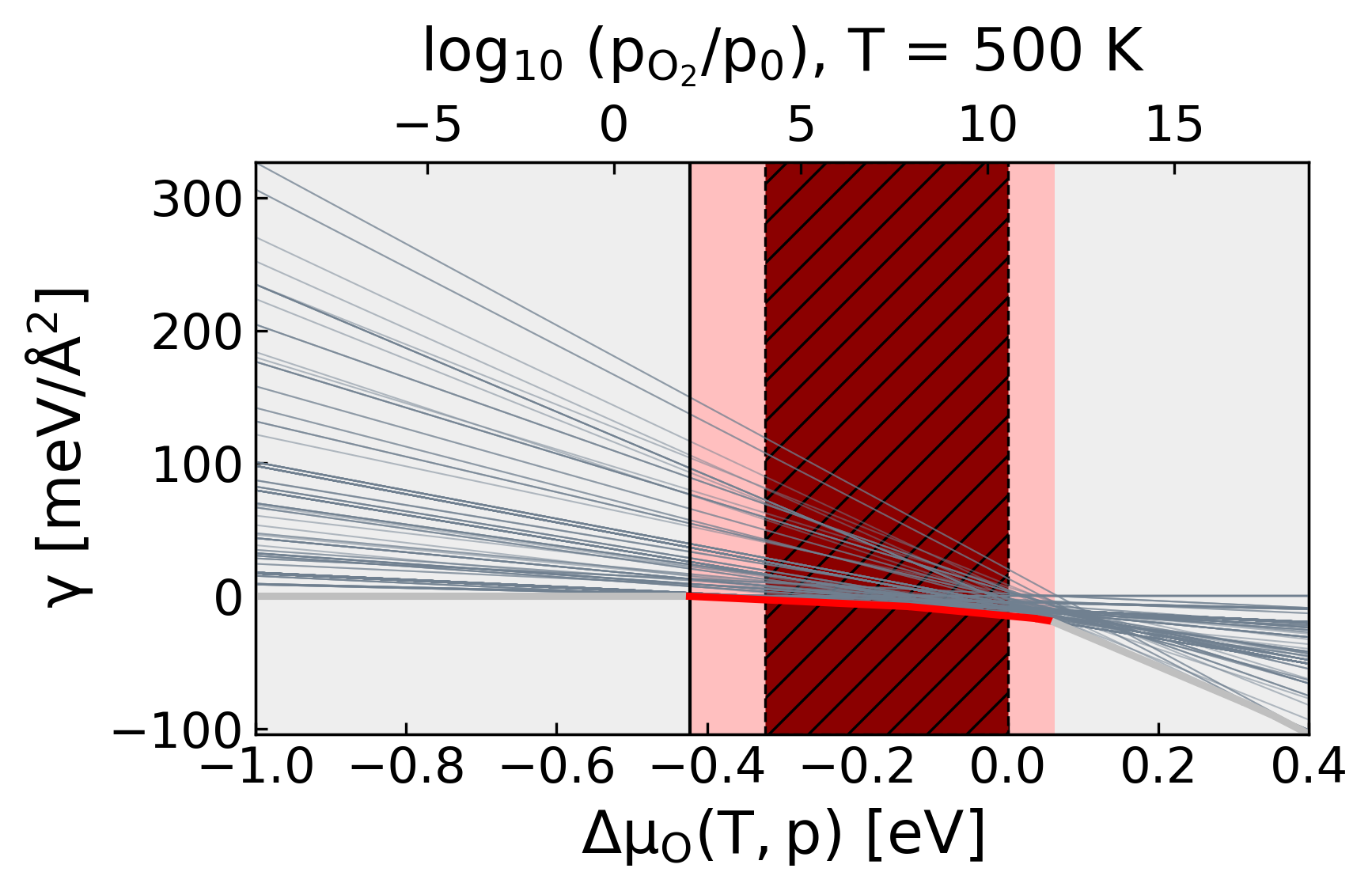

Surface phase diagram from a quick MACE-MP GCMC sweep.

Surface Gibbs energy \(\gamma(\Delta\mu_O)\) for every relaxed configuration in the sweep (gray lines). The colored envelope marks the stable phase at each \(\Delta\mu_O\); vertical bands separate distinct stable phases. The hatched dark-red region indicates \(\Delta\mu_O > -\Delta H^f_{\mathrm{Ag}_2\mathrm{O}}\), where bulk Ag2O is more stable than any surface phase.

What to read off the plot:

  • Phase transitions appear as kinks in the lower envelope; the \(\Delta\mu_O\) values are returned in transitions_delta_mu_o.

  • Color intensity encodes the surface oxide ratio (O atoms divided by top-layer Ag atoms above z_threshold).

  • The leftmost band corresponds to the clean reference slab (idx_ref); rightward bands carry increasing O coverage.

Thermodynamic model (from the thesis)

For an oxidized configuration at given oxygen chemical potential, the thesis uses the oxygen-dependent formation Gibbs energy. For surfaces, this is written in terms of the surface Gibbs energy \(\gamma\):

\[\gamma = \frac{E - n_{\mathrm{Ag}}\mu_{\mathrm{Ag}} - n_{\mathrm{O}}\mu_{\mathrm{O}}}{A} - \gamma_{\mathrm{ref}},\]

where \(E\) is the DFT energy of the relaxed configuration, \(n_{\mathrm{Ag}}\) and \(n_{\mathrm{O}}\) are atom counts, and \(A\) is the surface area.

The oxygen chemical potential \(\mu_{\mathrm{O}}(T,p)\) is expressed as

\[\mu_{\mathrm{O}}(T,p) = \frac{1}{2} E^{\mathrm{DFT}}_{\mathrm{O}_2} + \Delta \mu_{\mathrm{O}}(T,p) + \frac{1}{2} \ln\left(\frac{p}{p_0}\right).\]

To correct DFT overbinding of O$_2$, the thesis replaces \(\tfrac{1}{2}E^{\mathrm{DFT}}_{\mathrm{O}_2}\) using the experimental formation enthalpy of the corresponding oxide:

\[\frac{1}{2} E^{\mathrm{DFT}}_{\mathrm{O}_2} = E^{\mathrm{DFT}}_{\mathrm{Ag}_2\mathrm{O}} - 2E^{\mathrm{DFT}}_{\mathrm{Ag}} + \Delta H^{f}_{\mathrm{Ag}_2\mathrm{O}}.\]

In the code, this correction is embedded in e_o2 (see mcpy/utils/phase_diagram.py).

How utils/phase_diagram.py finds stable phases

The function computes \(\gamma(\Delta\mu_O)\) for each relaxed structure and selects the minimum at each chemical potential value. Concretely, it performs the following loop:

  1. Load all frames from relaxed_structures.xyz.

  2. Define a grid of oxygen chemical-potential offsets \(\Delta\mu_O\) (delta_mu_o in the code).

  3. For each structure conf and each \(\Delta\mu_O\), compute the surface Gibbs energy density \(\gamma\) using the DFT energy, atom counts, the corrected oxygen reference energy e_o2, and the surface area \(A\). In the implementation, this is done by free_en(...) and then shifted so that the reference structure at idx_ref defines \(\gamma_{\mathrm{ref}}\).

  4. For each \(\Delta\mu_O\) bin, select the index of the stable phase as argmin of \(\gamma\) over all configurations.

  5. Detect transition points when the stable phase index changes between neighboring bins; these are returned as transitions_delta_mu_o.

Importing the analysis helper

from mcpy.utils.phase_diagram import analyze_phase_diagram_results

result = analyze_phase_diagram_results(
    trajectory_path="relaxed_structures.xyz",
    idx_ref=2400,
    output_plot_path="lines_phases_mace.png",
    show_plot=False,
)

print("Transition points (delta mu_O):", result["transitions_delta_mu_o"])
print("Stable configuration indices:", result["stable_conf_idx"])
print("Saved plot:", result["plot_path"])

Inputs and outputs

Inputs:

  • trajectory_path: path to an ASE-readable trajectory (e.g. .xyz) containing the relaxed structures you want to classify.

  • idx_ref: reference frame index used to define \\gamma_{\\mathrm{ref}} (a constant energy offset that shifts the whole phase diagram line).

  • output_plot_path: where to save the generated phase-diagram plot.

  • show_plot: whether to display the plot interactively.

Outputs:

  • transitions_delta_mu_o: oxygen chemical-potential offsets where the stable phase changes.

  • stable_conf_idx: the index of the lowest-energy configuration at each \\Delta\\mu_O bin.

  • phase_oxide_ratios: a per-phase oxide ratio used for coloring.

  • plot_path: path to the saved figure.

What this function does

  • Loads all frames from relaxed_structures.xyz.

  • Computes free-energy lines as a function of \(\Delta\mu_O\).

  • Finds the lowest-energy structure at each \(\Delta\mu_O\).

  • Detects transition points between stable phases.

  • Highlights phase regions with background color bands and a color-changing stable-energy line.

  • Saves the resulting plot (lines_phases_mace.png by default).

Command-line usage

You can still run the same analysis script directly:

python -m mcpy.utils.phase_diagram relaxed_structures.xyz \
    --idx-ref 2400 --output lines_phases_mace.png
