Cells

Cell objects in mcpy define where Monte Carlo moves act and how much free volume is available for insertions. They are the geometric counterpart of the move set: every cell provides random points for insertion, classifies atoms as “inside” the active region, and returns the accessible volume \(V_{\mathrm{free}}\) used by the GCMC acceptance rules (see Free volume and species_radii).

Four cell geometries are exported from mcpy.cell:

from mcpy.cell import Cell, CustomCell, SphericalCell, DomeCell

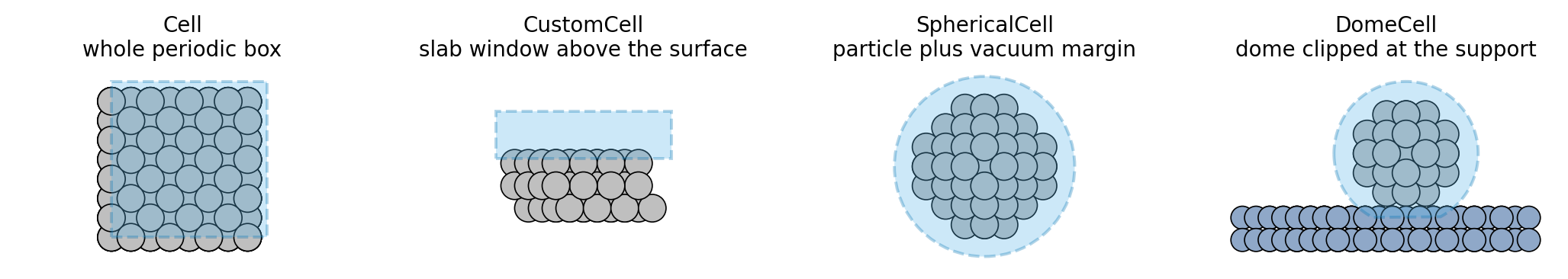

The four cell geometries (side views). The shaded region is where insertion points are drawn.

Choosing exclusion radii (species_radii)

Every non-trivial cell takes a species_radii argument: an element-wise dictionary of exclusion radii. These radii control how the free-volume Monte Carlo estimator labels each sampled point as occupied or free, and therefore directly determine the \(V_{\mathrm{free}}\) that appears in the GCMC acceptance terms.

The thesis underlying this library calls this quantity \(r_{\mathrm{relax}}\) and defines it operationally as the position of the first maximum in the radial distribution function of the adsorbate around the host atoms, calibrated on relaxed structures with the same calculator used in production. Using values that are too small inflates insertion attempts into atomic cores; using values that are too large collapses \(V_{\mathrm{free}}\) and freezes the chemistry. See Calibrating species_radii for a complete, reproducible workflow (including a ready-to-use script for O on Ag) and the recommended conventions for mapping pair distances onto element-wise radii.

Sampling resolution (mc_sample_points)

mc_sample_points sets the number of random points used in the free-volume estimate. Larger values reduce statistical noise on \(V_{\mathrm{free}}\) at the cost of one up-front sweep per configuration change. In practice, \(10^5\) points is a good default for nanoparticle- and slab-sized systems. The cached estimate is reused until the atom count changes, so the cost is amortised over many trial moves of equal \(N\).

Cell – full periodic simulation box

Cell uses the full ASE simulation cell (atoms.cell) as the active MC region. Random points are sampled uniformly in fractional coordinates and mapped to Cartesian space.

Use this when the active region is simply the entire periodic box.

from mcpy.cell import Cell

cell = Cell(atoms, species_radii={"O": 0.0, "Ag": 2.947})
cell.calculate_volume(atoms)
V = cell.get_volume()

CustomCell – rectangular sub-slab

CustomCell carves out a sub-volume that spans the full \(x\) and \(y\) extent of the simulation box but has a finite thickness along \(z\). This is the standard construction for surface slabs, where insertions should be limited to the topmost layers and a slice of vacuum above them.

Key parameters:

• custom_height – thickness of the active region along \(z\),

• bottom_z – \(z\)-coordinate of its lower face,

• species_radii – per-element exclusion radii,

• mc_sample_points – free-volume sampling resolution.

from mcpy.cell import CustomCell

custom_cell = CustomCell(
    atoms,
    custom_height=5.5,
    bottom_z=5.0,
    species_radii={"O": 0.0, "Ag": 2.947},
    mc_sample_points=100_000,
)
custom_cell.calculate_volume(atoms)

SphericalCell – nanoparticle-centred region

SphericalCell is designed for finite clusters. On construction it centres the structure on the origin and defines a spherical active region of radius

\[R = \max_a \|\mathbf{r}_a - \mathbf{r}_{\mathrm{c}}\| + \mathrm{vacuum},\]

i.e. the distance from the centre to the outermost atom plus a user-specified vacuum gap. Insertions outside this radius are automatically rejected, so the sampling stays close to the particle surface without wasting moves in pure vacuum.

from mcpy.cell import SphericalCell

spherical_cell = SphericalCell(
    atoms,
    vacuum=3.0,
    species_radii={"Ag": 2.947, "O": 0.0},
    mc_sample_points=100_000,
)
spherical_cell.calculate_volume(atoms)

DomeCell – supported-nanoparticle dome

DomeCell is the supported-particle counterpart of SphericalCell. It defines a hemispherical (“dome”) active region: the ball of radius

\[R = \max_{a\,\in\,\mathrm{particle}} \|\mathbf{r}_a - \mathbf{r}_{\mathrm{c}}\| + \mathrm{vacuum},\]

around the particle centroid \(\mathbf{r}_{\mathrm{c}}\), truncated at the support surface (\(z \geq\) bottom_z). Unlike SphericalCell it does not translate the atoms, and it centres on a chosen particle species rather than the whole-system centre of mass – so the dome sits on the nanoparticle instead of somewhere inside the support slab.

Use this for a nanoparticle on a substrate when insertions should stay on and around the particle (and its metal-support contact rim) rather than spreading across the bare support, which is what a slab-spanning CustomCell would otherwise allow.

Key parameters:

• particle_species – symbol (or list of symbols) identifying the nanoparticle, e.g. 'Ag',

• bottom_z – \(z\)-coordinate of the support surface; the dome is clipped below it,

• vacuum – padding added to the particle bounding radius,

• species_radii – per-element exclusion radii,

• mc_sample_points – free-volume sampling resolution.

from mcpy.cell import DomeCell

dome_cell = DomeCell(
    atoms,
    particle_species="Ag",
    bottom_z=surface_z,
    vacuum=3.0,
    species_radii={"Ag": 2.068, "O": 0.0, "Al": 3.0},
    mc_sample_points=100_000,
)
dome_cell.calculate_volume(atoms)

A worked end-to-end run is in GCMC of O on a supported Ag nanoparticle (dome region).

Choosing the right cell

• Cell – bulk periodic systems where the whole box is active.

• CustomCell – slab/surface windows inside a periodic box.

• SphericalCell – isolated clusters and nanoparticles.

• DomeCell – nanoparticles supported on a substrate (keeps insertions on the particle).
